Mini Lab Twin Screw Extruder

Mini Lab Twin Screw Extruder

Product Details

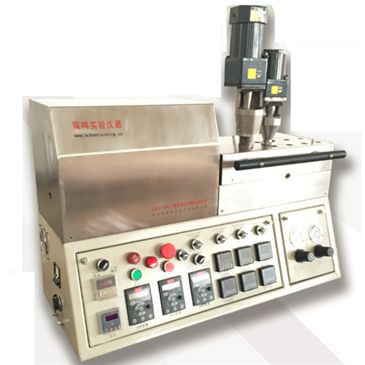

Mini lab twin screw extruder

Features:

1. Low amount of raw materials, low energy consumption, especially for some valuable raw materials test research

2. Easy to operate, good plasticizing and dispersing performance, can be carried out regular cycle extrusion or continuous extrusion

3. Small size, light weight, can work on the test bench, and the process of inert gas protection

4. Can replace the different head and the corresponding auxiliary machine, in a continuous extrusion state can do plastic tube, blowing, film, sheet, profile, spinning, granulation, coating and other plastic products

5. Can be used with our micro-injection molding machine, the material can be sent directly into the extruder into the injection box injection box, and directly facilitate the injection molding required spline

6. The use of different feeding device can use micron, nano-powder, fish seeds and granular raw materials extrusion.

7. Different shapes of different raw materials using a number of feed and the main motor and the proportion of the feed motor can make the dispersion of raw materials to achieve the best results.

Technical parameters:

Item

Parameters

Screw speed(rpm)

0-51

Torque(N.m)

100

Extruded form

Can be set according to the cycle of mixing or extrusion or extrusion

(No flow around the runway)

Optional special feeding device can set the cycle delay time to set the melt pressure when the cycle

Cycling extrude raw materials quantity (g/per )

15

Direct extrude raw materials quantity (kg/h)

1.5

Host speed linkage with feeding device

Can be set

Cycling banburying linked with feeding device

Single feed port for precise ingredients

Can be set

Motor Power(kW)

0.75

Rated motor voltage(V)

220

Motor rated current(A)

3.3

Operating temperature(°C)

0-450

Resolution.(°C)

0.1

heating power(kW)

2-2.4

Heating rated current(A)

9-11

Dimensions(mm)

800×350×580

It can be used together with our injection machine
